Investing in a rotary oven is only effective if the rack system inside operates flawlessly. You rely on this equipment daily to maintain bakery output. An improperly sized trolley risks jamming the rotation mechanism mid-bake. It restricts essential airflow and creates severe workplace safety hazards for your staff. Buying off-the-shelf equipment based solely on external doorway measurements is a common mistake. It often leads to incompatible lift mechanisms, unnecessary motor strain, and uneven baking results.
Our goal is to provide a standardized, engineer-level approach to measuring rotary oven chambers. We will show you how to specify the exact trolley build required. You will learn the exact clearance tolerances needed for optimal convection. This ensures a seamless operational flow. It also protects your expensive bakery infrastructure from premature wear and tear.
Internal chamber clearance and lift-mechanism compatibility (hook vs. platform) dictate base trolley dimensions.
Airflow requirements mandate a strict clearance margin between the trolley corners and the oven walls during full rotation.
Trolley capacity must align specifically with the exact dimensions of your standard commercial baking sheet pans to prevent tray slippage.
High-heat environments require specific material grades, prioritizing fully welded 304 stainless steel and high-temperature phenolic casters.
Using poorly sized commercial oven trolleys creates immediate operational friction. Mechanical strain takes a severe toll on your oven components. An oversized or improperly balanced rack degrades the rotation motor over time. The lift bearing suffers from uneven weight distribution. These components eventually fail. You then face sudden downtime and expensive emergency repairs.
Product consistency also relies entirely on proper spacing. The physics of rotary baking demand unobstructed convection currents. Hot air must circulate freely around every single tray. Racks built too wide block these critical airflow channels. You will see uneven bakes across different tiers. One side of a loaf might look pale while the other burns. This forces bakers to discard unsellable products.
Thermal inefficiency is another silent drain on operations. Carts sometimes fail to clear the access ramp. They may obstruct the main door seal. This prevents the oven from closing completely. Heat leaks constantly into the bakery. It increases your daily energy consumption. Recovery times between bakes stretch longer. You lose valuable production cycles simply because the cart frame dimensions are slightly off.
You must measure the true internal dimensions first. Record the exact depth, width, and height of the baking chamber. Do not rely on external casing measurements. The critical factor is the rotation diagonal. This represents the widest point of the trolley frame when turning.
You calculate this diagonal using basic geometry. Measure from the front left corner to the back right corner of the intended frame footprint. This diagonal measurement must easily clear the internal chamber walls. Industry standards require a minimum of 2 to 3 inches of clearance. The corners must clear all interior walls, steam pipes, and heat exchangers during a full 360-degree rotation.
Your measurements must match the specific lift style of your oven. Many ovens use an A-Lift or hook system. You must measure the exact height requirement for the top crossbar engagement. The lifting hook grabs this crossbar to elevate the rack. If the crossbar sits too high, the oven hook cannot engage. If it sits too low, the wheels drag on the floor during rotation.
Platform or turntable systems require a different approach. You must measure the base footprint maximums. The bottom frame must fit entirely onto the rotating platform. You also need to check the locking pin alignments. Turntables use pins or base channels to secure the cart. Your trolley base must slot perfectly into these guides. This prevents dangerous shifting while the oven spins at high speeds.
Floor transitions matter just as much as internal chamber volume. Evaluate the approach angle into the oven. A cart might fit the internal chamber perfectly. However, it can drag on the oven access ramp. Bottom frame clearance is crucial here. Measure the distance from the floor to the lowest horizontal support bar. Ensure the caster mounts sit high enough to clear the steepest point of the ramp.
Standardizing your equipment prevents operational chaos. Your rack runner widths must fit exact tray dimensions. For example, standard US bakeries use 18"x26" full-size pans. European models often use 400x600mm metric equivalents. A frame built for metric trays will cause US pans to slip. Trays dropping during rotation create massive messes. Always specify the exact pan type you intend to use.
Pitch refers to the vertical distance between each runner tier. You measure pitch from the bottom of one runner to the bottom of the next. You must evaluate your maximum product height. High-rise artisan breads require a generous pitch. Low-profile cookies need very little vertical space.
You must balance your maximum pan capacity against necessary airflow gaps. Packing 30 tiers into a rack might seem efficient. However, tight spacing chokes the convection currents. Proper airflow requires clear space above the tallest baked good on each tier.
Product Type | Average Product Height | Recommended Pitch Clearance | Typical Tiers per Rack |
|---|---|---|---|
Cookies / Macarons | 0.5 inches | 3.0 inches | 20 - 24 tiers |
Croissants / Pastries | 2.5 inches | 4.0 inches | 15 - 18 tiers |
Muffins / Cupcakes | 3.5 inches | 5.0 inches | 12 - 15 tiers |
Artisan Boules / Loaves | 5.0+ inches | 6.5 inches | 10 - 12 tiers |
Consider the total weight of fully loaded trays. Wet dough on a 20-tier rack is incredibly heavy. A single tray of dense rye dough can weigh over 10 pounds. A full rack approaches 200 pounds of product weight. Add the weight of commercial baking sheet pans. The trolley's structural integrity must support this dynamic load. The frame must remain perfectly rigid while spinning. Weak uprights will bow inward under heavy loads.

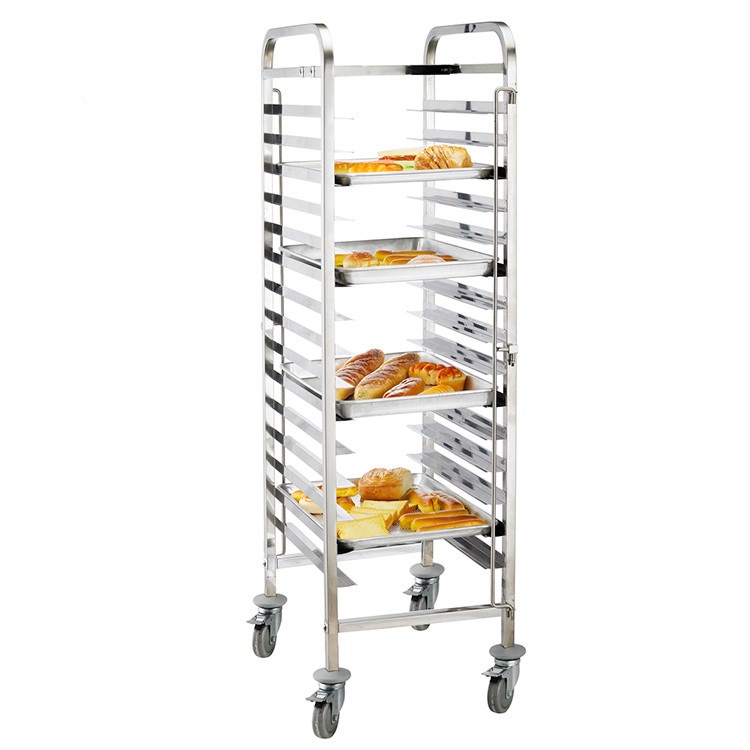

Choosing the right steel dictates the lifespan of your equipment. A proper stainless steel baking tray trolley uses 304-grade steel. We consider 304 stainless steel the gold standard for bakery applications. It offers superior resistance to high heat and steam humidity. Aluminum warps under constant oven temperatures. Lower-grade 430 stainless steel lacks sufficient nickel. It will eventually rust after exposure to daily washdowns and steam injection cycles.
Examine the implementation reality of bolted versus fully welded joints. Manufacturers offer bolted racks for easier shipping. However, you should avoid bolted frames for rotary ovens. Rotary ovens create continuous torsional stress. The spinning motion vibrates standard bolts loose. Welded frames resist this stress far better. Heavy-duty TIG welding at every cross-section ensures the rack never loses its square shape. A rigid square shape prevents pan slippage.
Wheels often represent the most vulnerable point of any bakery rack. You must specify casters rated for sustained extreme temperatures. Standard nylon or polyurethane casters will melt instantly inside a baking chamber. They leave a hardened plastic mess on your oven floor. We recommend specialized phenolic resin or high-temperature rubber wheels.
These specialized casters handle temperatures exceeding 500°F (260°C). Furthermore, they require high-temp food-safe grease in the bearings. Standard bearing grease liquefies and leaks out during the first bake. Without proper grease, the wheels seize up. A seized wheel causes immediate workflow paralysis across the bakery floor.
Your equipment must bridge different production zones effectively. You want purchased Oven Trolleys to transition safely straight from the baking chamber to blast chillers. You might also move them to ambient cooling zones. Operators should never perform manual tray-by-tray transfers. Transferring hot trays individually wastes labor hours and increases burn risks. A truly integrated rack moves fluidly through every stage of production.
Evaluate your current floor layout carefully. Do your standalone commercial cooling racks share the same dimensional footprint as your new oven carts? Mismatched fleets create floor-space bottlenecks. If one cart is six inches wider than the rest, it disrupts your staging lanes. Standardizing external dimensions across all racks ensures they nest or line up uniformly. It keeps aisleways clear and predictable.
Moving a fully loaded, 500-degree cart across a busy bakery floor poses significant risks. You must evaluate handle placement carefully. Extended vertical handles allow operators to push the cart safely. They keep hands away from the searing hot side panels. Consider the heat-transfer risks of the handle material itself. Solid stainless steel handles conduct heat quickly. Some premium models incorporate heat-break designs to keep pushing surfaces cooler.
You will face a choice between OEM and aftermarket fabricators. Original Equipment Manufacturer (OEM) racks guarantee a perfect fit. They match the oven's lift mechanism exactly. However, they typically carry a premium price tag. Custom-fabricated aftermarket options offer significant savings. They also allow you to customize pitch spacing. The tradeoff is the burden of accurate measurement. If you measure incorrectly, an aftermarket fabricator holds no liability for the bad fit.
Bulk fleet orders require strict quality control. Always request a single prototype first. If a physical prototype is unavailable, demand a detailed CAD drawing. You must physically test-fit the prototype against your specific oven’s lift mechanism. Load it with water-filled pans to simulate dough weight. Run it through a complete baking cycle. Only authorize the full production run after this successful physical validation.
Interview your fabricators before signing purchase orders. Ask specific questions about their manufacturing tolerances. Request warranty terms covering weld breakages. Inquire about caster load ratings and grease temperature thresholds. Finally, check the availability of replacement parts. Casters wear out eventually, even under ideal conditions. You need assurance that replacement high-temp wheels ship quickly when needed.
Sizing an oven cart remains a strict exercise in operational geometry. It requires matching chamber sweep radius perfectly to ensure safe clearances. You must align the lift hardware precisely to prevent floor dragging. Tray specifications must guide your runner width and pitch choices. Taking the time to evaluate these dimensions guarantees a safe, highly efficient baking environment.
Your immediate next step is information gathering. Locate your rotary oven’s make and model number. Find the original internal spec sheet if possible. If you lack the documentation, grab a tape measure. Perform physical measurements of the internal chamber and lift mechanism today. Have this exact dimensional data ready before you contact any trolley fabricator.
A: You need a minimum clearance of 2 to 3 inches between the cart's widest rotational point and the oven walls. This sweep radius rule ensures proper convection efficiency. It prevents air blockages and protects heat exchangers from collision damage.
A: Yes, provided you specify the correct components. You must use high-temperature phenolic casters and high-temp food-safe grease. The frame must consist of thermal-shock resistant 304 stainless steel. This prevents warping when moving from a 500°F oven directly into a blast chiller.
A: You require high-temperature phenolic resin or specialized rubber casters. They must withstand sustained temperatures above 500°F. Standard nylon wheels will melt immediately. The bearings must also feature high-temperature grease to prevent seizing during operation.
A: You measure pitch vertically from the bottom edge of one runner to the bottom edge of the next runner. Calculate this by taking your maximum product height and adding 1.5 to 2 inches of extra clearance for adequate airflow.
